VW Baywindow Bus - Understanding the Ignition System
by Richard Atwell
(c) Copyright 2005-2020
VW Baywindow Bus - Understanding the Ignition Systemby Richard Atwell |
|
The stock ignition system...well, it's weak and in need of improvement. It's not like any other Bosch equipped 70s vehicle is any better nor would I recommend you replace the Bosch/Beru components 1:1 with another brand but there are some improvements you can make to restore some of the power waiting to be released in that 2L bus engine. That's a big torquey engine compared to your average 1600cc Type 1 motor although it has to lug around a 3200 lbs chassis.
When my bus is in perfect tune it's a real pleasure to drive. When it's not, I quickly notice it because the power you have is a precious commodity and just on the edge of being able to make the most of the engine powe. In other words there is just barely enough. The smaller displacement Type 4 engines are only suitable for 411s and 914s. Even the purists can't help themselves from including a little cc boost during a rebuild and going with a 2L.
The stock Bosch L-Jetronic fuel injection is a dream compared to a set of carbs. There's nothing to adjust except for the idle mixture and it stays in tune for a very long time. However it is just as susceptible to weak ignition and the FI is always the first to be blamed when it's often an ignition problem. Unless we are talking about the 79 CA model with electronic ignition, the parts are the same from 1972-78.
Here's what I've learned about the system and what I've done to make the best of it. Sometimes all you need is a new part you didn't realize you needed. Sometimes there's a better alternative.
Note: VW used both Bosch and Beru for parts. Beru is considered a 2nd tier vendor although the quality is still very good. Since Bosch is #1 and easiest to find I generally recommend Bosch.
Unless you are broken down on a road trip, AVOID using stock style ignition parts from a company other than Bosch or Beru, the two OEMs that VW used to produce millions of reliable quality made parts. Those parts work great, fit the best and are inexpensive. You can't beat their value.
Bremi is another OEM and you'll find those parts in Europe mostly and sometimes available in USA/Canada.
The Bosch ignition system in your bus would be easily recognizable if an automotive engineer time travelled from 1910 to the present and looked in your engine compartment because schematically, it's nearly identical to the original design.
The one nice aspect about the stock system is that the parts are dirt cheap. If you haven't priced ignition parts for new cars (especially other 4-cyl engines), I can guarantee that you that you won't be able to replace the ENTIRE system (minus distributor itself) with new OEM parts for the $75 the VW system costs. Even pricing aftermarket parts for a modern car wouldn't be as inexpensive.
If you happen to need a new Bosch distributor, they are now NLA. They used to cost $129 for a Bosch Mexico 034 and it included points, cap, rotor and condenser! That was a bargain compared to almost any other make of vehicle which is largely due to the fact that VW's were low cost, rarely changed (for better or worse) and were made in the millions over many decades.
The Bosch ignition system is based on a design by Charles F. Kettering of AC Delco and is sometimes simply referred to as points ignition system. His system is compact, multi-tasking and still serves as the foundation for factory ignition systems installed in most spark-ignition cars today. At first that might seem shocking but remember the gasoline otto engine is also 100 years old.
Every Kettering based ignition system is made up of a coil, distributor and spark plugs/wires. I'll explain the function of each of these. Open this diagram in another window and refer to it as you read along.
The coil is the black or blue canister that bolts to the fan shroud. Inside the can are two sets of wiring coiled around an iron core suspended in an asphalt epoxy (some cans are oil filled). The filler acts as a di-electric that also serves to dissipate the heat that is produced as the system operates.
On top are 3 terminals which Bosch labels Terminals 1, 4 and 15 using their standard numbering scheme:
It's an efficiency of the design that Terminal 1 is shared (otherwise two "ground" terminals would be required).
12v battery power is applied to Terminal 15 and is grounded at Terminal 1 by the action of the components inside the distributor. When the ignition points inside are "closed, the current that flows through the coil generates a magnetic field because it's an electrical inductor. When power is removed from the coil (disconnect Terminal 1 from ground by opening the points) the field collapses and this induces a voltage in the secondary winding which has to go somewhere. This manifests as a high-voltage current at Terminal 4, also called the high tension tower.
The coil acts as both an energy storage device and a step-up transformer which converts a low voltage (12v) and high current (4A) into a very high voltage (6kV) and a very small current (8mA) to ignite the air/fuel mixture.
The high voltage from the coil leaves Terminal 4 and enters the top of the distributor via the coil (or sometimes king) wire:
Cap - Five posts on the outside: one in the center for the coil wire and four others that lead to each cylinder. The cap also keep the system free of moisture.
Rotor - Underneath the cap is a rotor which spins to distribute the spark to each cylinder via terminals molded into the underside of the cap which connect to each post above it. The cap is connected to the top of the rotor by a spring loaded carbon brush. The rotor has two terminals: one on top where it meets the carbon brush and one at the tip which almost connects with the terminals in the cap as it rotates. In between the terminals of the rotor is an epoxy embedded wire wound resistor (usually 5 kohm) that limits the amount of current that is conducted through it.
Points - Beneath the rotor should be a dust cap (black/clear/dark brown) and below it are the ignition (or breaker) points. When you tune up your engine, one of the tasks is to adjust the points which requires setting the gap between its two contacts with a feeler gauge. Even though the contacts touch, it wears due to the several amps of current that flow between them that change the contact surface from a shiny radiused one to a flat pitted one.
The points open and close because they are fitted to a rubbing block that rides the cam on the shaft of the distributor. The shaft is driven off the crank and turns at half the speed of the engine (camshaft rotational speed). The points indirectly wired to Terminal 1 on the coil with a normally green wire. When the points are "closed" a current flows through the primary coil winding through the points to ground (the distributor case). As the cam in the distributor rotates, it causes the point gap to widen which becomes too large for the current to jump. When this happens, the voltage in the primary winding of the coil is interrupted and the magnetic field collapses. The voltage induced in the secondary winding builds until there is enough potential (many kV) to jump the spark plug gap at which time a current begins to flow (spark). In addition to jumping the gap of the spark plug, the current also has to jump the gap between the rotor and the terminals inside the distributor cap.
The energy level in the coil is determined by the time the points dwell in the closed position. Excessively large gap between the points result in lower coil energy and a weaker spark. When the gap is too small it can cause misfires.
As the gap changes, so does the timing. The gap can change as a result of the surface of the points wearing as well as from an ever wearing rubbing block that rides against the cam. It's important to keep the cam lubricated with the correct grease (Bosch 5 700 002 005 "Ft 1v4") for this reason.
Condenser - This capacitor is an energy storage device which is placed in parallel with the points. The condenser prevents the high voltage induced in the secondary circuit from jumping the points to ground because it's an easier path to ground than the one that leads to the spark plug gap (remember Terminal 4 connects to Terminal 1 through the secondary winding which leads to the points). If not for the condenser, the points would pit (burn) very quickly. When the condenser goes bad, the result is often no spark.
Mechanical Advance - Inside the distributor are a set of springs and advance weights. The weights are held in place by springs and swing outward as the shaft rotates with the engine. As the weights move the plate that holds the points twists counter clockwise relative to the shaft. This has the effect of advancing the timing because the points are now closing earlier than before (the shaft rotates clockwise with the engine). This is called mechanical (or centrifugal) advance and the reason we need more advance as the engine spins faster is that the piston is travelling faster but the chemical reaction in the combustion chamber still has a relatively fixed reaction time. If the advance comes in too soon the pressure from combustion might try to force the piston down during it's up travel. If it comes too late, less torque will be produced as the pressure will be wasted as heat absorbed by the cylinder walls.
Most Bosch distributors (except for the "009"") have two types of springs inside. The first is fully extended and reacts as soon as the engine speed increases from idle. The second spring is elongated so that it begins to stretch at a much higher rpm. Not only different in length but this spring is also stiffer and the overall effect is an advance curve that has two slopes: at first a quick advance then it tapers off. The maximum advance is limited by two stops inside the body that prevent the weights from moving further outward at higher rpms. The required amount of advance depends on the combustion chamber design and the camshaft selection. 20-24 degrees is typically required by 3500rpm. After that the turbulence of the intake mixture is enough to promote combustion at the maximum advance.
Vacuum Advance - attached to the outside of the body, the vacuum can has a diaphragm inside which is connected to the advance plate by armature. A port on the can is attached to the intake system by rubber hose and when the vacuum from that port pulls on the diaphragm the arm rotates the advance plate to move the points counter clockwise just as the advance weights do. The purpose of this is to help the mixture ignite by optimizing the timing of the spark (lean mixtures at partial throttle require more advance). Some vacuum cans have two diaphragms inside: one for rotating the plate counter-clockwise (advancing the timing) and one for rotating it clock-wise (retarding the timing). Timing is usually only retarded to reduce emissions at idle. A typical can will advance the timing up to 9-12 degrees extra under certain conditions. There are many cans and the specifications vary from year to year.
Each wire connects the coil to each cylinder through the rotor under the distributor cap to deliver the electrical energy to the spark plugs. Each cylinder wire is made from stranded tinned copper wire fitted to a connector that embeds a 1.0 kohm (short connector) or 1.4 kohm (long connector) resistor inside depending on the length of the connector. The resistor damps the voltage of the ignition pulse when the spark is cutoff and is necessary to limit EMI/RFI.
The coil wire is normally made from a carbon conductor and has a much higher resistance (10-18kohm) than the other wires to limit EMI/RFI. It is also a current limiting device. If the other wires don't corrode their connectors from age, the coil wire usually burns up and fails first. Before it burns up, the resistance increases and the result is a weak spark.
Each spark plug is threaded into the cylinder head and protrudes slightly into the combustion chamber. The stock plugs have a copper conductor and come in one or two suitable heat ranges. Some plugs protrude more into the combustion chamber than others but the threads of the plug never do. The energy produced by the ignition system manifests itself as a high voltage spark that jumps from the center electrode to ground by ionizing the air in between. When the spark occurs, the current that flows ignites the air fuel mixture.
To be effective all the resistors must be physical near to the gaps which are generating the EMI pulses.
So now that we know what parts are in the system, let's go over their limitations and understanding how the various parts work, see what benefits can be achieved.
The biggest weakness of the system are the points. PERIOD. They are not designed to last the 15k mile service interval as they are often in terrible shape by then.
Problems:
The rubbing block of the points wears against the cam. The cam is supposed be to lubricated with a specialized grease (Bosch 5 700 002 005) to reduce wear but many owners who perform their own maintenance fail to do this. The last thing you want is the cam to wear because it cannot be compensated for.
Even with greasing, the block wears down and as it does the contacts grow closer together. When this happens the time that the points are closed is extended increasing the dwell and this has the effect of slowly retarding the timing.
You may have noticed two types of rubbing blocks: white and brown. The white one is made from polyamide (nylon) and the brown is made from resitex. Polyamide is the newer material but apparently a bad batch of them sent people hunting for the old style many years ago. IIRC, the block broke off too easily and people went back to what worked. Some VW owners recommend the 01 030 points used in some vintage Porsches because they have the brown rubbing block as well as a stronger spring than the 01 011 set. I personally don't think the difference is enough to matter when fit in the bus. The nylon block is also lighter and designed to reduce the moving mass of the points to reduce "points bounce" at higher rpms.
Every time the current that passes through the points is interrupted a little bit of the metal from one contact is transferred and welded to the other. This has the cumulative effect of creating a pit on one side and "tit" on the other over time. The contacts are radiused to begin with so that the closest point to each other is the center of each contact and as the shape of the points change so does the distance and the location from which the spark plugs. This changes the gap and the dwell.
The contacts are tungsten plated for added durability. When the tungsten wears out the points pit more quickly. If you file the points flat to resurface them which was traditionally recommended, you will remove the tungsten coating and burn out the points faster.
When the condenser fails the points pit quickly because of the high voltage that is not supposed to flow through them when the spark occurs in the secondary. The result is a weak spark or even lack of spark.
Solution:
Eliminate the points altogether. For $80 from CIP1.com you can purchase an "electronic ignition" that fits inside the distributor. It's completely stealth and you'll never have to adjust or replace the points ever again. Limiting the maintenance of the distributor to simply oiling the felt wick in the center of the shaft is a godsend especially because the distributor is in an awkward position to adjust the point. If you have a 72 bus with no access hatch, you will absolutely hate adjusting points.
With the gap now electronically controlled, the dwell remains the same and so the only wear that you experience during the 15k mile service interval will be the wearing of the spark plugs themselves.
The stock vacuum can distributor requires the Pertronix Ignitor 1847V (sometimes 1847 but never 1847A which is for the 009). Installation takes about 30 minutes (less if the distributor is removed from the engine) and you simply remove the points AND condenser from the distributor, fit the Ignitor inside and then connect the two wires to the coil.
Do not reverse the wires otherwise you will fry it before you've even tried it out. Red goes to 12V (Terminal 15) and black goes to the other post (Terminal 1). Other than that, the unit is absolutely dependable. Because this style of ignition has a dedicated power transistor inside to switch the coil on/off unlike the points which wear as they conduct several amps through them.
I installed my Pertronix in 2003 and haven't had a single issue.
The first thing you notice after performing this upgrade is that the bus idles better, accelerates more smoothly and revs higher. Pertronix claims your gas mileage will increase and it does but don't expect miracles: a maximum increase of 2-3 mpg if you are lucky.
Problems:
If your engine has been fit with the 009 distributor (Bosch 0 231 178 009) instead of the stock distributor you are missing out. The problem with the 009 is a basic one: it ruins the drivability of your bus even though it's working perfectly:
Apart from NEVER being fit to any production VW, the total advance is too little under most conditions for a VW engine (only 22-24 degrees). Not only that but the advance comes in too fast. To compensate for this, the timing at idle has to be set higher than normal.
The end results of this behavior is that there is a flat spot just off idle and inadequate advance as you accelerate. Some people think the surge of power that comes later is cool but all they are really achieving is abrupt acceleration, a larger gasoline bill and more emissions. Maybe it works on a beetle in a tailwind with no passengers but in a bus? No way.
Solution:
Unless you've also switched to a set of carbs that cannot power the vacuum can on a stock vacuum dual-advance (SVDA) distributor you should switch back to the stock system. Luckily a Mexican Bosch vacuum distributor (043-905-205ZB) is now available (meant for beetle but perfect for 75-79 FI bus).
Note: aside from replacing worn out parts and setting the points gap, the top of the distributor shaft has a piece of felt that MUST be oiled regularly to prevent sticking of the mechanical advance mechanism as the factory grease inside hardens. Overtime the inside of the distributor overall will become gummed up with dirt and old hardened grease and will require disassembly, cleaning and lubrication.
Problem:
Having bashed the 009 suitably, the original distributor CAN last forever if it's disassembled, cleaned and regreased at regular intervals. It's anyone's guess what this interval should be but I will guess that 100,000 miles is the upper limit.
This assumes that the felt has been oiled routinely and the cam greased each time the points are changed.
If it's worn in any of these common ways it needs repair or ultimately replacement:
Solution:
Disassembly is NOT a trivial task! It is challenging and the parts are easily lost but can be learned and mastered like most VW work.
See the references for links to distributor rebuilders...
The engine originally came with a black Bosch coil. This part is no longer available and the replacement is the Bosch blue coil. Often just called the blue coil, it's thought of as being a "hotter coil" probably because it's been marketed under the words "super" and "screamer" in the past. Hot is equated with hotter spark but is it true? I've always been skeptical of this claim so I decided to put it under scrutiny.
The energy stored in the coil can be mathematically represented using the energy storage formula for an inductor:
Energy = 1/2 L I^2
...or read using the units of measure, Joules = Henries * Amps * Amps. What's important to notice about that formula is that the energy level increases as the square of the current compared to a linear increase by the inductance. In order words boosting the current will do more good as long as the coil is designed for it. This is why low resistance coils exist (they are designed to pass more current and dissipate the heat generated from it).
The windings of the stock coils are connected to the terminals in series with a ballast resistor measuring only a few ohms. How does the Blue coil compare? It has a higher primary resistance (lower current) than the black coil but is that due to the windings or the ballast resistor? The secondary windings have a lower resistance so they are clearly different. You'd have to ruin both by taking them apart to figure out how much resistance is attributed to the ballast. Even without a ballast you cannot measure the resistance of the coil and infer from it the number of primary and secondary windings which will determine how the spark will perform (the step-up transformer function).
We could measure this current flowing into the primary using an ammeter (the higher the current level the more energy for the coil) but comparing the inductance between the two coils is difficult without specialized equipment so we can't draw any conclusions even though the current level is more important according to the equation.
Rather than try to measure the minuscule current level in the secondary, we can measure the voltage level in the secondary to witness the effect of switching coils. Because the energy level is conserved across the windings (minus losses) we should see higher voltages in the secondary representing lower currents (weaker sparks) in the primary. We can also assume the the voltage required to jump the spark is fixed, so once we've exceeded the threshold voltage the current flowing only depends on what's available all other components being equal.
The exact amount of current will be affected by the number of windings in the secondary and the wiring between the coil and the spark plug but we don't care about resistance or counting turns of wiring, just the results witnessed at the spark plug. Here's the trace from my oscilloscope:

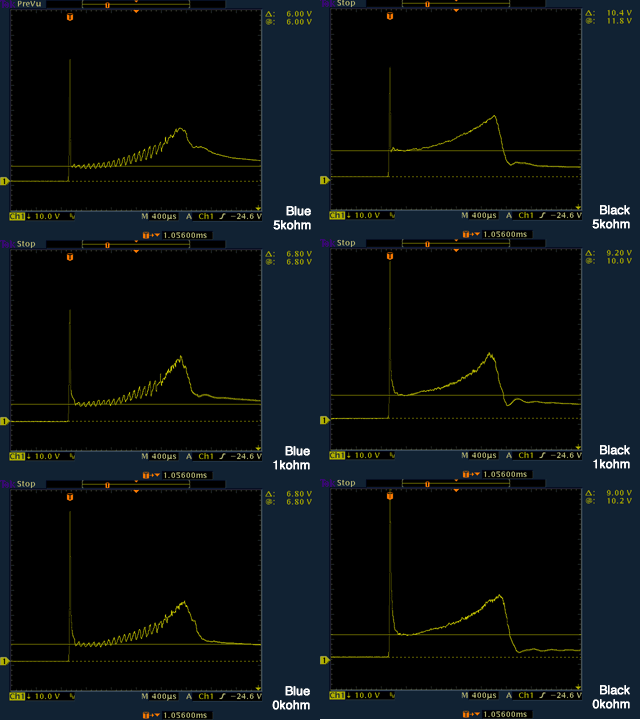

As can be seen, the peak voltages are the same when switching coils except in the case where the rotor resistor is 1 kohm (this seems to destabilize the circuit anyway). The portion we are interested in is the burn voltage and duration (the raised part of the signal after the spike marked by the solid horizontal line until the oscillation begins). In the graphic, the Blue coil is on the left and the Black coil on the right. These traces are averages over time which is why the blue coils have an oscillation during the burn voltage and why there is no harmonic damping witnessed as the spark burns out for either coil.
The duration is about 1.2ms at 6kV for the Blue coil and the burn voltage is about 10kV for the Black coil. Since the burn voltage level of the Blue coil is lower we can assume the current level is higher and we're producing a better spark using the Blue coil. Current is the essence of spark although total power (watts) is important too. The burn duration is also similar so overall we are ahead using the Blue coil.
The differences are slight: the Black and Blue coils are essentially identical and the Blue one produces a stronger spark but you won't see any improvement in driving or at the gas pump from the Blue coil because the spark from the Black coil is already enough. Of course the Black coil is NLA and you have no choice when you need to buy a new one but I just wanted to debunk some of the hot coil legend and save you $60 on the unnecessary purchase of a Blue coil if your Black coil is still working. Paint it blue and don't tell your friends it's really black.
What about the Compufire/Pertronix chrome coils (the "hot coils" with a primary that measures 3 ohms and it's secondary 9 kohm)?. They spark no better than the Blue coil with the stock ignition system so save your money and stick with stock.
Which spark plugs work best? Spark Plugs vary by heat range, length (19mm reach), threads (M14x1.25), ground electrodes and internal construction.
The stock plug is either a Bosch W7CC or W8CC plug (aka Bosch Super with copper electrode). W7CC is recommended for highway usage, hot weather and FI while W8CC is suitable for all year round plug use and idling in heavy traffic. Neither of these plugs have a protruded nose or multiple electrodes. You might be tempted to purchase platinum plugs or buy a plug with multiple electrodes but the stock plugs offer the best value.
Platinum plugs last 100-120k miles in new model vehicles. They are designed and for a modern high compression combustion chamber (which makes them unsuitable for use in a VW aircooled engine ;-) and they are also designed for a modern electronic ignition system. I've never come across a bus owner who said they fit platinum plugs and saw any improvement. In fact, many mechanics has solved engine problems with VWs by removing them.
Multiple ground electrodes are somewhat of a marketing gimmick. The spark can only jump from the core electrode to one ground electrode. Since the center electrode wears much quicker than the ground electrodes there is little benefit and the other electrodes simple serve to block the flame produced by the ignition event. No manufacturer that I'm aware of fits multiple electrode spark plugs in their cars. Most platinum plugs are single ground electrode as well. So you may ask why does a reputable company like Bosch do it? Marketing is a powerful tool and they must feel that they need to compete with Champion, Autolite and so on.
Finding a Bosch plug that was Made in Germany is no longer possible. A long time ago I switched to NGK B6ES (or BP6ES) plugs on the advice of Type2.com list members. I cannot say whether or not it's a longer lasting plug than the Bosch (which last about 13k miles before going downhill) but the plugs seems to burn cleaner judging by the coloring left from combustion.
The biggest benefit of using a NGK plug is that the body is slightly narrower allowing easier fitment of a cylinder head temperature (CHT) sender under the spark plug. If you don't have a CHT gauge in your bus you it overheating without you knowing it (because there is no radiator to boil over). Under ideal operating conditions, the engine is designed to stay cool but the CHT gauge is your only warning that something is wrong long before the engine seizes or breaks.
Stick with any of the plugs mentioned above. Make sure the spark plug gap is set to 0.7mm.
What are resistor plugs? These are spark plugs with a 5 kohm resistor inside. They are used on ignition systems that lack the RFI supressing resistors elsewhere in the wiring. Generally, you don't need them but if you were to use wiring that lacked sufficient suppression you could use these type of plugs. One exception is CDI ignition which don't repsond well to extra resistances just as the rotor doesn't (see below).
2020 Update: NGK plugs WITHOUT the resistor are no longer being manufactured. They were still made in Japan or assembled in the US from Japanese parts up until it was discontinued.
What most parts suppliers are doing is selling you a BR6ES plug when you order a B6ES plug. This resistor plug will work in your bus but it will weaken the spark quite a bit so you should find some old stock of these spark plugs on eBay or elsewhere.

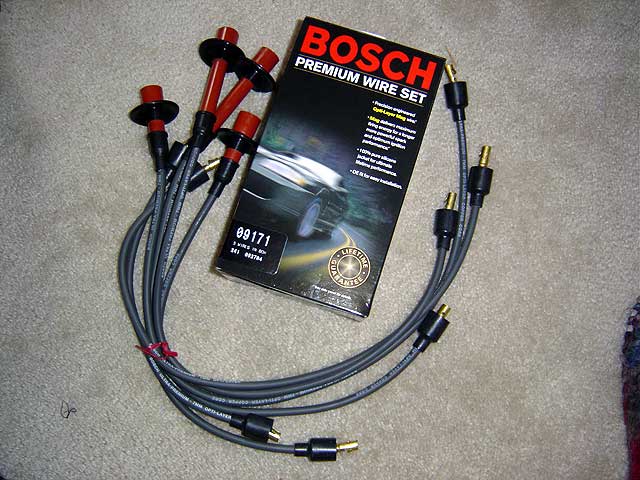

It used to be that the stock 7mm silicone jacketed Bosch 09171 plug wires couldn't be beat for cost or quality. If you can find a NOS set for $80 you'll be fine but you can find comparable sets from Karyln-STI and others that cost less and are high quality.
If the jacket of your wires is a hard rubber instead of silicone then you've got a really old set you should replace them.
When you start upgrading your ignition system, it's tempting to upgrade the spark plug wires. Like spark plugs with multiple ground electrodes and so called high voltage coils, you don't need to upgrade the spark plug wires with a stock ignition system because you cannot take advantage of them: the voltage required to jump the plug gap is all that will be generated by the ignition system and no more. As the gap increases from wear, the voltage levels will increase but it will still be within the capability of the stock components. Sorting out the marketing messages from the science behind wiring design is so defeating that you simply have to experiment to get any answers. Most often, replacing worn out part accounts for 95% of the improvement people see replacing their ignition system components (the placebo effect).
If you try an aftermarket set of wires you may find they either lack the engine tin seals or lack the correct size spark plug connectors or both. I can find Bosch 09171 sets online for $21 so it makes no sense to buy anything else. These sets are now made in Mexico but I find the quality the equal of the German made sets. Stick with Bosch-style whenever possible because they are the correct length and fit so well. They also last a long time. The weakness of the set is the resistor in the spark plugs connector which can burn up and presents such a high resistance to the coil and weaken the spark.
Bosch style 7mm wires have more than enough insulation to handle the higher voltages from upgraded ignition system. If you are tempted to use an 8mm or 10mm jacketed wire keep in mind that these wider jackets are too wide to fit the Bosch spark plug connectors. If the aftermarket wire set has its own connectors but doesn't have a long enough connector you will have a harder time removing the plugs wires. Even CDI ignition systems (from marketing departments who rate the output at 45kV) do not produce those kind of voltages under normal operating conditions that require wires with larger jackets.
If you do find a NOS Bosch 09171 set, the box is misleading: it reads Opti-layer mag core wiring but there is a disclaimer that only Japanese and Domestic models apply. European wire sets, like VW are stranded tinned copper conductor with resistive connectors.
|
If you have a Bosch distributor you should be using a Bosch or Beru rotor. They are not only well made and long lasting but still relatively inexpensive although prices have gone up in the past 10 years. My advice is only to purchase a rotor from the local auto parts store in an emergency. Better yet, carry a Bosch/Beru spare in your bus. If you have a stock ignition system, your rotor is probably Bosch 04033 (or perhaps the 04016 rev limiting version). These rotors have an embedded 5 kohm resistor under the black epoxy. The resistor serves several purposes:
As you can see there are many tradeoffs and Bosch has had to balance the system to achieve several outcomes at once. If you have a CA electronic ignition system from a 79 bus the rotor will contain a 1 kohm resistor (04038). It uses a smaller resistor in conjunction with a special coil that has different primary and secondary resistances to match. Look at the graphs and compare the spark produced by the 5 kohm resistor in the first trace to the traces for a 1 kohm resistor and one that has had the resistor removed (0 kohm). The 5 kohm trace has a very sharp fall from the peak voltage required to fire the spark plug, to the burn voltage level where the bulk of the current flows. This results in the longest burning spark (at idle rpm) which is what you want. As the resistance of the rotor decreases, the length of time it takes to fall from peak voltage increases and the shorter the spark.
Don't try to outsmart VW/Bosch: they knew what they are doing when they specified which rotor to use. Did you also notice the end spike in the 1 kohm trace? The voltage spikes after the burn duration with the 0 kohm and 1 kohn resistors are unwanted and only serve to help break down insulation over time. Once again, it's all about compromise... Is it ok to substitute the 1 kohm version with a Federal ignition? Yes. In my experience, when EVERYTHING else is working 100%, you will increase the burn duration at all RPMs, and experience a small power boost from using the 1 kohm rotor (04038). If you can't feel the difference, you have a weakness in another area. Long term, will it shorten the life of your Pertronix ignition because the resistor also serves to limit that current that flows in reverse when the coil collapses? I don't know (There is a 1N00x internal diode inside for protection but I'm not sure what function it serves in the circuit). I've been using a 1 kohm rotor for a while now and I'll report back my findings when I reach the next spark plug change interval. Using a 1 kohm resistors isn't a problem for the factory CA ignition so if you swap in those components be sure that the correct rotor is used. Those peaks may be heard on your radio in which case you'll want to switch back as well. Note that the spark plug gap and the gap between the rotor and the distributor cap terminals are both sources of RFI. |
|
02/06/05 - Created
11/23/05 - Updated with field testing
09/08/11 - Fixed broken photos, added translate button, updated footer
07/15/19 - Google update: new adsense code, removed defunt translate button
11/11/20 - Added index, updated prices and parts availability and added some more background on rotors
